Grate 36 Bioethanol Fireplace Insert
Grate 36 Bioethanol Fireplace Insert
In stock
-
Delivery time: 1-2 weeks
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

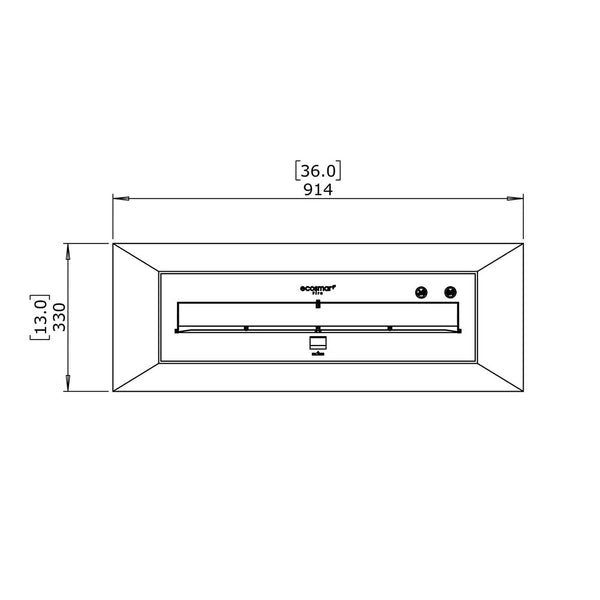

Dimensions
| Height | 15,6 cm |
| Width | 91,4 cm |
| Depth | 33,0 cm |
| Weight | 23,5 kg |
Materials & finish
| Material | Stainless steel - Grau 304 / Concrete Composite |
| Color | Dark Grey |
Installation dimensions & requirements
| Flue/chimney | Not Required |
| Minimum room size (m3) | 90 m³ |
Heating performance
| Heat output (max) | 4,0 kW |
Fuel & consumption
| Fuel type | Bioethanol |
| Fuel capacity | 7,0 L |
| Fuel consumption (litres per hour) | 0,65 L/h |
| Burn time | 12,0 h |
Flame & visual effects
| Adjustable flame | Yes |
Safety distances
| Use | Indoor |
Electrical
| Power requirements | No |
Controls & features
| Remote control | No |
| Control | Manual |
| Glass included | No |
General / commercial
| Warranty | 2 |
EcoSmart Grate 36 Freestanding Bioethanol Insert
The Grate 36 is a freestanding bioethanol insert designed to fit into old open fireplaces and wood stoves. The number "36" in the name refers to the width of the insert, which is 36" (or 91.4 cm).
With the EcoSmart Grate 36, you can transform your old wood-burning fireplace into a modern bioethanol fireplace. Simply place the freestanding insert inside your old fireplace, and it's ready to use.
The Grate 36 is equipped with EcoSmart's elongated XL700 bioethanol burner, which has a capacity of 7 liters and an expected burn time of 9-12 hours. (May vary depending on installation environment and bioethanol composition)
The burner is also tested in accordance with the European standard for liquid fuel fireplaces; BS EN16647.
Package Contents
- Grate 36 including XL700 burner
- Flame regulator
- Ignition/extinguishing tool
- 5-liter filling can (empty)
- Filling adapter
- Lighter
Highlighted Features
- Bioethanol consumption of ±0.65 liters/hour
- Adjustable flame using the flame regulator
- Up to 12 hours of burn time per fill
- Capacity of 5 liters
- Heating area of approx. 50 sqm
- No chimney or flue required
